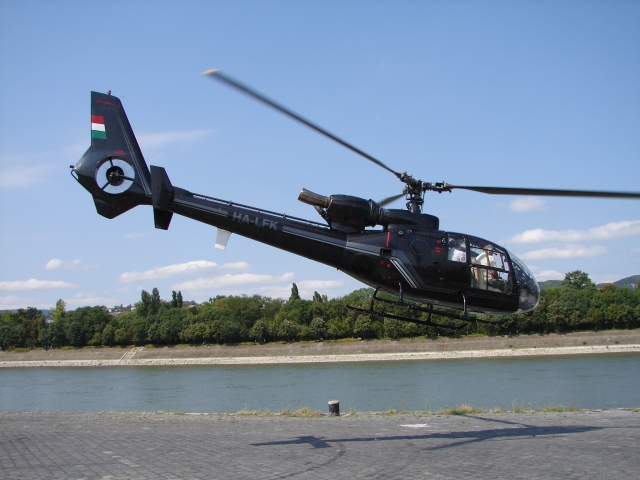

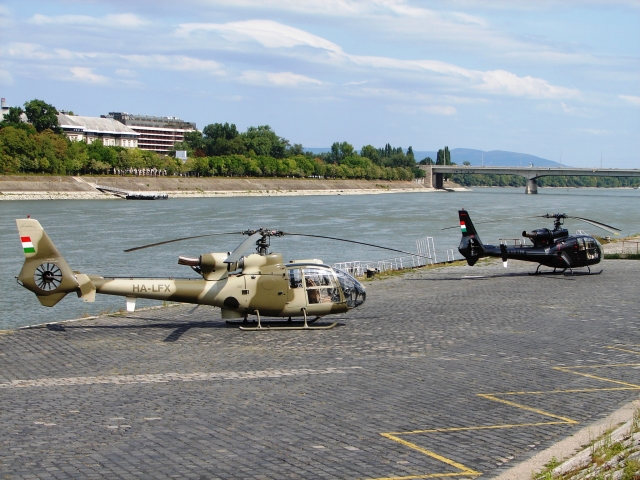

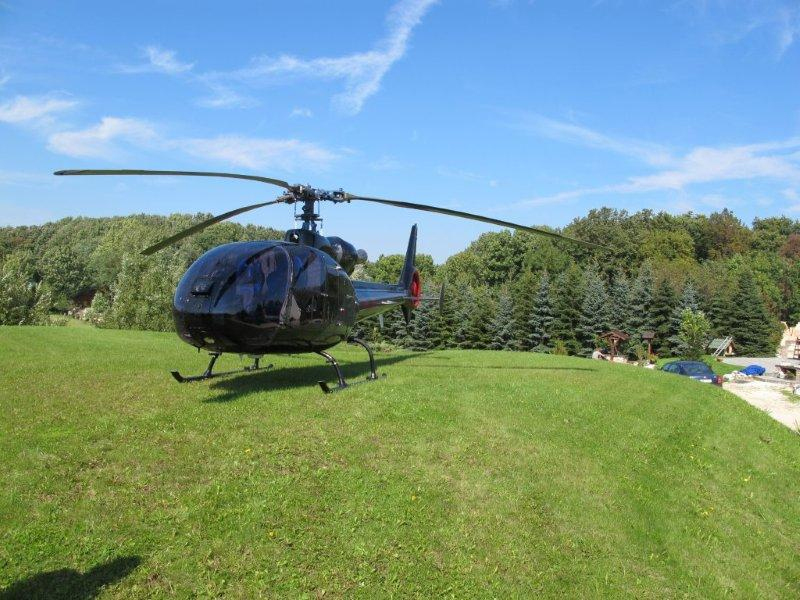

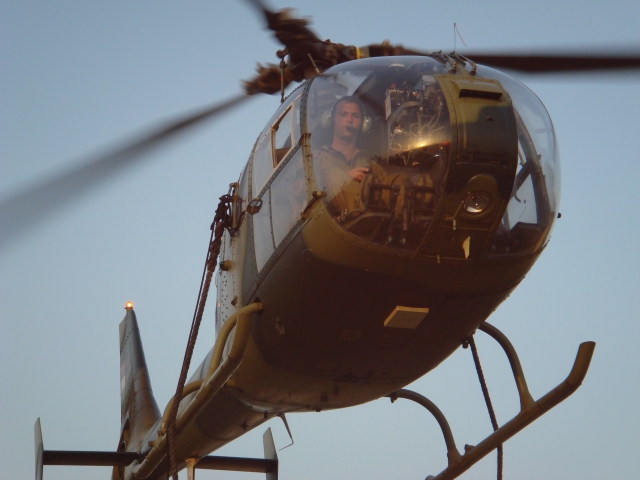

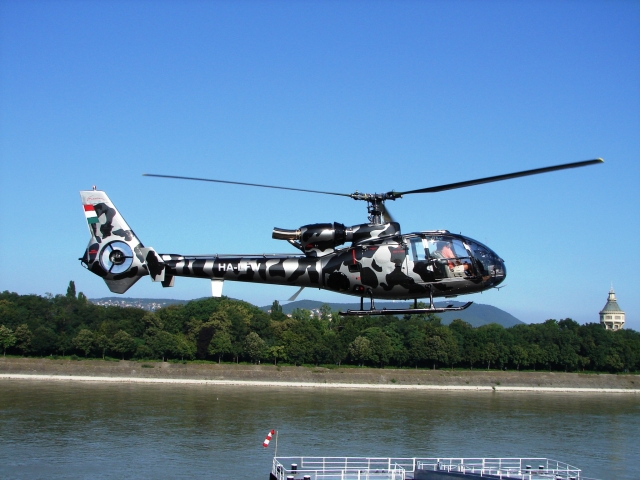

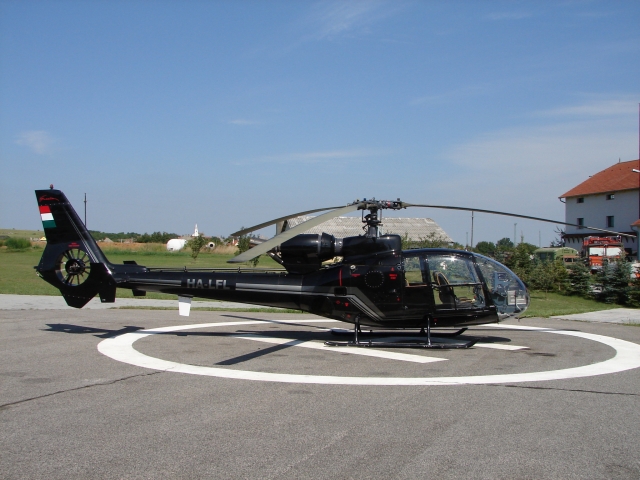

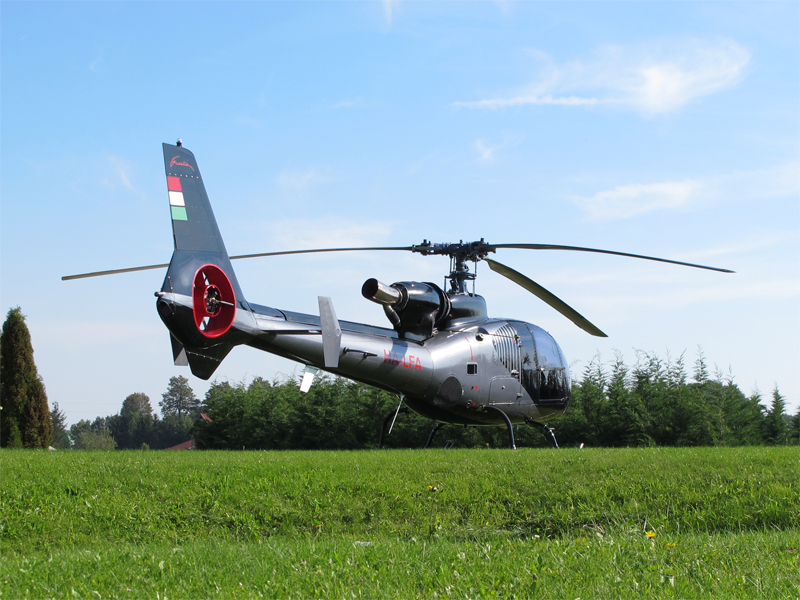

Aerospatiale Gazelle SA341G
General Characteristics
- Crew: 1 + 4 passengers
- Length: 9.53 m (31 ft 3 in)
- Rotor diameter: 10.50 m (34 ft 5 in)
- Height: 3.18 m (10 ft 5 in)
- Disc area: 87 m² (932 ft²)
- Empty weight: 998 kg (2,196 lb)
- Max takeoff weight: 1,800 kg (3,960 lb)
- Powerplant: 1× Turboméca Astazou IIIA turboshaft 590 shp (440 kW)
Performance
- Continuous speed: 270 km/h (146 kt)
- Cruising speed: 238 km/h (129 kt)
- Maximum speed: 310 km/h (168 kt, 198 mph) at sea level
- Range: 500+ miles
- Service ceiling: 20,000 ft
- Rate of climb: 12.2 m/s (2,400 ft/min)
